Toyota GR Corolla Carbon Guards 2022-2025
Toyota GR Corolla Carbon Guards 2022-2025
BATCH 1 SALE
Couldn't load pickup availability
Batch 1
Megachip™ splash guards are track-ready while subtle enough for daily driving. These provide invaluable protection to the paint behind the wheels and along the sides of the car. The front guards have a 1/2" width adjustment for stock wheels or wider setups.
Megachip carbon guards are engineered with aerodynamic performance, extreme durability, and a seamless fit and finish.
Testing was performed using computational fluid dynamics (CFD) to simulate aerodynamic performance of the guards specifically on the GR Corolla. The left-hand (driver's) side of the car is stock, while the right-hand side has Megachip guards.
Fig 1: air velocity on horizontal plane with and without guards
The results from the analysis indicate a measurable, but negligible, increase in drag.
Below is a photo showing the the pressure increase near the Megachip guards. Air velocity is approximately 100 MPH approaching the car:
Fig 2: air pressure differences with and without guards
Air direction / deflection are visualized in the following pictures, one without Megachip guards and one with them:
Fig 3: Air pressure without guards; vertical plane
Fig 4: Air pressure with guards; vertical plane
Fig 5: Results during 60-simulation analysis
The graph shows consistent results during a sequence of simulations: there is a very small increase in drag coefficient with Megachip guards. However, it is important to note that software results do not always align perfectly with real-world outcomes. The result is a splash guard taken to the highest degree of quality and design, making it extremely competent on the track and in the showroom.
Details:
- 1.25 mm thick, 2x2 twill weave, gloss finish carbon fiber is hand-laid and autoclave-cured
- Drastically reduces rock chips and splashing along the sides of the fenders, doors, and rear bumper. Drive with confidence on rough pavement, through construction sites, and off-road settings
- Functional in all weather conditions including reducing spray from snow and salty slush
- Installation takes 15 minutes
- Engineered and tested specifically on Limit+1's GR Corolla for extensive Midwest Winter driving and track testing
- Aerodynamically optimized using CFD analysis
- No drilling, vehicle modifications, or aftermarket hardware required

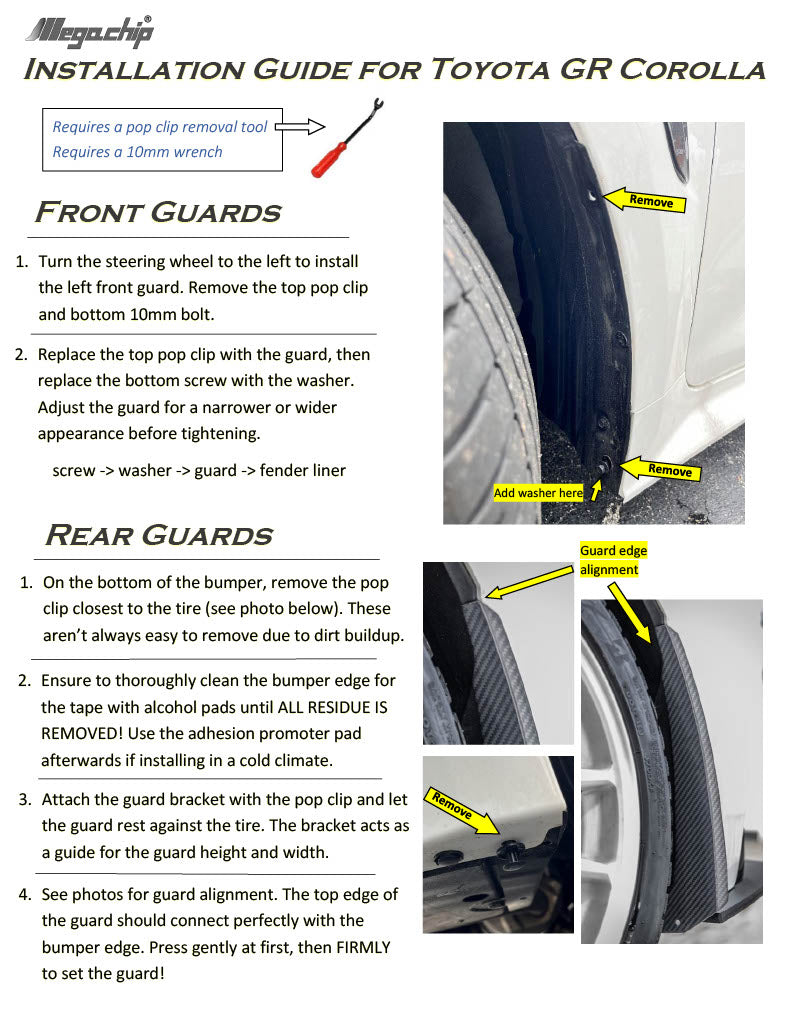

- Installation instructions included
- Assembled in the USA with USA materials

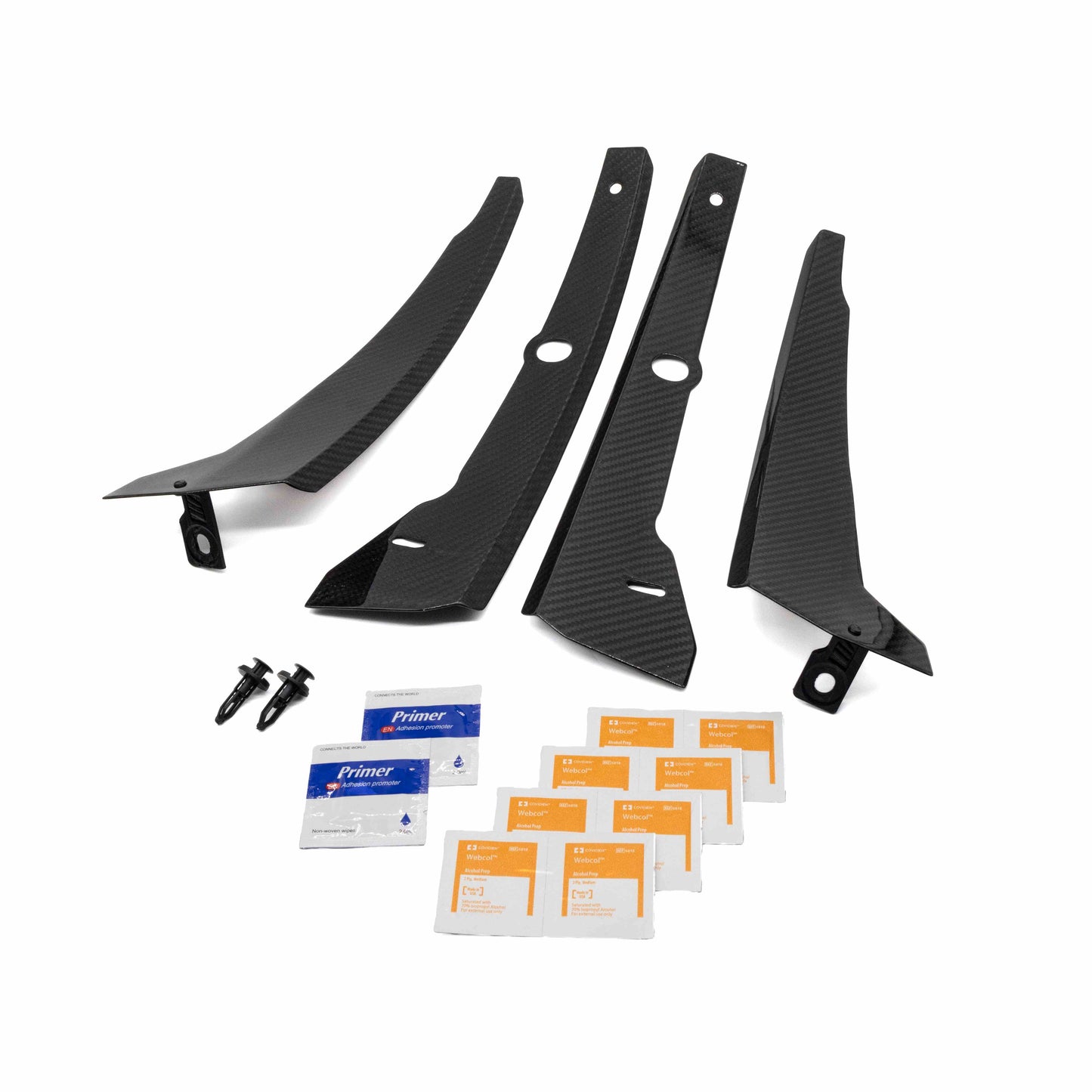

What's Included:
- 4x Megachip guards
- 4x Alcohol prep pads
- 2x Adhesion promoter pads
- 2x Washers for front guards
- New rear pop clips
- Installation instructions
- Guaranteed satisfaction
Shipping & Returns
Shipping & Returns
Low-cost options for standard and expedited shipping. International shipping rates calculated at checkout.








That's a Megachip guard under there.
Collapsible content
Why do you use 3M™ adhesive for mounting?
3M™ VHB™ tape creates a strong, permanent bond without the need for drilling or modifying the vehicle.
There is no damage caused by the mounting process. After installation, the 45 mil 5952 VHB bonds exceptionally well to the vehicle plastics, painted surfaces, and the rubber guard material, in all weather conditions.
Can you drive through a car wash with these? What about pressure washers?
With a proper installation, we guarantee the guards will stay attached to the vehicle except in cases of car crashes or physical contact of the guards with very large road debris.
Do these work in cold, snowy Winter conditions?
Absolutely. With six years and counting, Megachip guards have been put to the test through harsh Midwest winters, satisfying many customers who experience extremely cold conditions.
Do you offer a warranty?
We offer a one-year satisfaction guarantee, and will work with you to resolve any issues after that period. Rarely, a customer may lose a single guard in a car accident, a repair shop removing one and not replacing it, or a poor installation. We ensure customer satisfaction and will help you resolve any issues. Please email us at sales@MegachipUSA.com
